What is FR4 Plastic?

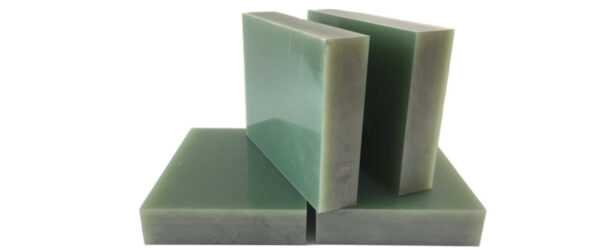

FR4 plastic is a widely recognized composite material known for its exceptional properties, particularly in electrical and electronic applications. It is a type of fiberglass-reinforced epoxy laminate, combining the strength of fiberglass with the versatility of epoxy resin.

Composition

FR4 consists of woven fiberglass fabric impregnated with epoxy resin. This unique composition provides significant mechanical strength and rigidity, making it an ideal choice for various applications where durability is crucial.

Electrical Insulation

One of the standout features of FR4 plastic is its excellent electrical insulating properties. It is commonly used in printed circuit boards (PCBs) due to its low dielectric constant and low dissipation factor, which are essential for effective electrical insulation.

Thermal Resistance

FR4 plastic can withstand high temperatures, generally up to 130°C (266°F). This thermal stability makes it suitable for applications where heat resistance is critical, such as in electronic components and devices.

Applications

FR4 is widely used in the electronics industry, particularly for PCBs, connectors, and insulators. Its strength and insulation properties make it valuable in telecommunications, aerospace, and automotive sectors, contributing to the reliability of various electronic devices.

Environmental Durability

In addition to its electrical and thermal properties, FR4 plastic offers good resistance to moisture and chemicals, enhancing its durability in challenging environments. This resistance makes it a preferred choice in applications exposed to harsh conditions.

Conclusion

In summary, FR4 plastic is a robust and versatile material that excels in electrical insulation, thermal resistance, and environmental durability, making it essential in many industrial and electronic applications.
